SOC
Inregistratoarele UltraShock si UltraShock-EB inregistreaza Socul, Temperatura, Umiditatea si Presiunea.
|
|
 |
 |
 |
 |
|
Data Logger |

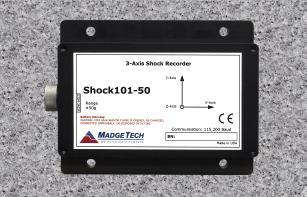

Shock101 |

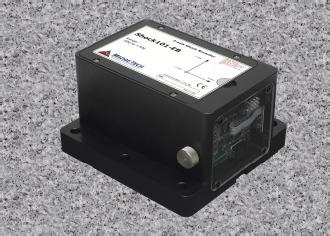

Shock101-EB |
SVR101 |

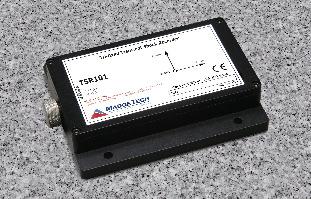

TSR101 |
|
Description |
Tri-Axial Shock Logger |
Tri-Axial Shock Logger with Extended
Battery Life |
Spectral Vibration Logger |
Tri-Axial Transient Shock Logger |
|
Range |
See Table Below |
See Table Below |
±5g, ±50g |
See Table Below |
|
Accuracy |
See Table Below |
See Table Below |
±0.2g, ±1g |
See Table Below |
|
Resolution |
See Table Below |
See Table Below |
0.01g, 0.05g |
See Table Below |
|
Memory |
349,525 per axis |
349,525 per axis |
16Mbit flash
(3,800 samples) |
349,500 per axis |
|
Operating Range |
Alkaline -18°C to 55°C
Lithium -20°C to 60°C |
-18°C to 55°C |
Alkaline -18°C to 55°C
Lithium -20°C to 60°C |
Alkaline -18°C to 55°C
Lithium -20°C to 60°C |
|
Dimensions |
3.5" x 4.4" x 1.0"
(89mm x 112mmx 26mm) |
5.5" x 5.2" x 3.2"
(140mm x 132mm x 8mm) |
3.5" x 4.4" x 1.0"
(89mm x 112mm x 26mm) |
3.5" x 4.4" x 1.0"
(89mm x 112mm x 26mm) |
|
NIST Certificate |
No |
No |
No |
No |
|
Delayed Start |
0 to 180 days |
0 to 180 days |
0 to 7 days |
0 to 7 days |
|
Alarm |
No |
No |
No |
No |
|
Water Resistant |
Weather Tight (IP63) |
No |
Weather Tight (IP63) |
Weather Tight (IP63) |
|
Features |
Rugged design, software calibration,
wide range, reusable, automatic calculation of total G
force, etc |
60 day battery life, rugged design,
software calibration, wide range, reusable, automatic
calculation of total G force, etc |
Trigger mode, computes real time FFT,
peak shock |
Tri-axial shock recording, built in
accelerometers, programmable start time, reusable. |
|
|
 |
 |
|
Data Logger |

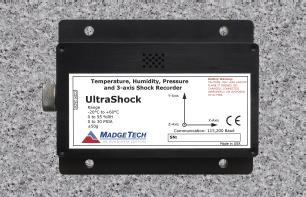

UltraShock |

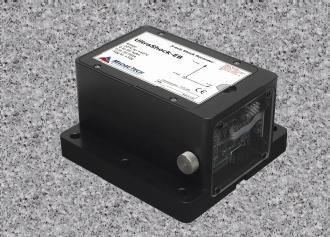

UltraShock-EB |
|
Description |
Tri-Axial Shock, Temperature, Humidity
and Barometric Pressure Logger |
Tri-Axial Shock, Temperature, Humidity
and Barometric Pressure Logger with Extended Battery
Life |
|
Range |
Shock: See Table Below-20 to +60°C
0 to 95%RH
0 to 30PSIA |
-18 to +55°C
0 to 95%RH
0 to 30PSIA
Shock: See Table Below |
|
Accuracy |
Shock: See Table Below±0.5°C
±3%RH
±1% FSR @25°C |
Shock: See Table Below±0.5°C
±3%RH
±1% FSR @25°C |
|
Resolution |
Shock: See Table Below0.1°C
0.5%RH
0.002PSI |
Shock: See Table Below0.1°C
0.5%RH
0.002PSI |
|
Memory |
174,762 per channel |
174,762 per channel |
|
Operating Range |
Alkaline -18°C to 55°C
Lithium -20°C to 60°C |
Alkaline -18°C to 55°C |
|
Dimensions |
3.5" x 4.4" x 1.0"
(89mm x 112mm x 28mm) |
5.5" x 5.2" x 3.2"
(140mm x 132mm x 80mm) |
|
NIST Certificate |
Yes |
Yes |
|
Delayed Start |
0 to 180 days |
0 to 180 days |
|
Alarm |
No |
No |
|
Water Resistant |
No |
No |
|
Features |
Rugged design, software calibration,
wide range, reusable, automatic calculationof total G
force, temperature, pressure, and humidity all-in-one |
60 day battery life, rugged design,
software calibration, wide range, reusable, automatic
calculation of total G force, temperature, pressure, and
humidity all-in-one |
Acceleration Range, Calibrated Accuracy, Resolution
|
Range (g)
|
±5
|
±50
|
±100
|
±250
|
|
Calibrated Accuracy (g)
|
±0.2
|
±1
|
±2
|
±4
|
|
Resolution (g)
|
0.01
|
0.05
|
0.1
|
0.2 g
|
