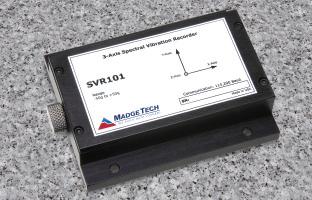

SVR101 - Inregistrator de Vibratie / Trepidatie
si Temperatura
 |
Dimensiuni: 89 mm x 112 mm x 26 mm |
|
|
|
|
|
Applications
- Machinery Failure Detection
- Detect Mechanical Resonances
- Endurance Testing
- Problem Diagnostics
- Wind Resonance on Structures and Support
- Vehicle Vibration
- Materials Research
|
|
Pret - la cerere
Marca: MadgeTech
Tara de fabricatie: SUA
SVR101 masoara
si inregistreaza:
Features
- FFT in Real-Time
- Records Vibration Frequencies and Peak Acceleration
- Calculates Spectral Intensity in Real-Time While Logging
- User Programmable Trigger Levels
- High Speed Download
- Programmable Start Time
- Built-in Accelerometers
The SVR101 is a self-contained device
engineered to record accelerations for spectral analysis of
vibration and peaks. This device records and time-tags 3-axis
vibrations and peaks to provide a history of shock / vibration
conditions. The SVR101 measures and computes real-time spectral data
using an FFT (Fast Fourier Transform) from 0 to 128 Hertz. To make
efficient use of memory, the SVR101 only takes data when the (user
preset) trigger level is exceeded. The minimum sampling rate is 2
seconds and the device can display peak X, Y, and Z shock data,
vector sum for data evaluated, up to 4 hours.
The SVR101 is a critical instrument for
quantifying and understanding vibrations and shocks in many
applications. From transportation to automotive design, motor
failure detection to mechanical resonance, the SVR101 can go to
remote places, operate from battery, and store the data in
non-volatile memory - retaining the data even if the batteries
discharge. Call dealer for extended battery life options.
Specifications
|
|
|
SVR101
|
|
Acceleration Sensor: |
|
MEMS Semiconductor |
|
Acceleration Range: |
|
±5g, ±50g |
|
Acceleration Resolution: |
|
0.05 g (12 bit) |
|
Calibrated Acceleration Accuracy: |
|
±1g |
|
Sample Rate: |
|
256 Hz (decimated~128Hz) |
|
FFT Range: |
|
0~63.5Hz in 0.5Hz bins (significant math
errors occur at 0~1.5Hz) |
|
FFT Window Period: |
|
2 seconds |
|
FFT Sampling Period: |
|
2 seconds~7,200 seconds(2 hrs) |
|
Temperature Channel: |
|
Range:-20~+60°C; Resolution:0.1°C;
Accuracy:±0.5°C |
|
Memory: |
|
16Mbit (3,800 samples) |
|
Sample Rate: |
|
2 seconds up to 2 hours |
|
Required Interface Package: |
|
IFC110 or IFC200 |
|
Baud Rate: |
|
115,200 |
|
Typical Battery Life: |
|
48 hours (9V lithium) |
|
Operating Environment: |
|
-20~+60°C, 0~95%RH non-condensing |
|
Material: |
|
Anodized aluminum |
|
Dimensions: |
|
3.5" x 4.4" x 1.0" (89mm x 112mm x
26mm) |
|
CE Approval: |
|
Yes |
|
Weight: |
|
12oz. |
|
Designed and manufactured in the USA. National Institute of Standards and Technology (N.I.S.T. USA) Conformity.
|
Reminder ! IFC computer interface cable required for computer (PC) operation of data loggers.
Check the accessories selection below.
|
Accesories / Software |
Description |
| IFC110 |
Includes software, manual and RS232 computer interface cable |
| IFC200 |
Includes software, manual, Quick Start Guide and USB computer interface
cable
Note: USB drivers are compatible with Vista 32 bit systems, not Vista 64 bit systems. |
| USB-1 |
USB to RS232 converter cable |
| USB101 |
Includes software, manual, RS232 (IFC110) computer interface cable and USB to RS232 converter cable |
| Tibbo DS202R |
DS202 Serial to Ethernet Converter
The Tibbo DS202R allows MadgeTech Data Loggers to be accessed over a network. |
| NIST |
N.I.S.T. Calibration Certificate |
| U9VL-J |
9.0 Volt, Lithium Battery, 1200 mAH |
|
|
Tibbo DS202R
The Tibbo
DS202R allows MadgeTech Data Loggers to be accessed over a
network. This allows for a logger to be placed in remote locations
and maintain communications to control and/or monitor the device
by creating a serial tunnel (virtual RS232 connection). The DS202R
is a simple, yet powerful device, that is useful in many
applications where a typical serial device may be used. The Tibbo
DS202R is intended for use within network communications, making
it quite useful for remote data logging. One Tibbo DS202R can
effectively network-enable a single data logger. |
