TSR101, TSR101-EB - Inregistratoare Tri-Axiale de Suprasoc
 |
Dimensiuni: 89 mm x 112 mm x 26 mm |
|
|
|
|
|
Applications
- Fragility Testing
- Laboratory Drop Testing
- Brake Testing
- Monitoring Shipments
- Machinery Monitoring
- Crash Testing
- Acceleration Monitoring
|
|
Pret - la cerere
Marca: MadgeTech
Tara de fabricatie: SUA
TSR101, TSR101-EB
masoara si inregistreaza:
- socul (maxime ale acceleratiei)
Features
TSR101
- Built in Accelerometers
- Compact
- High Speed Download
- Programmable Trigger Levels
TSR101-EB
- Built in Accelerometers
- Compact
- High Speed Download
- Programmable Trigger Levels
- Extended Battery

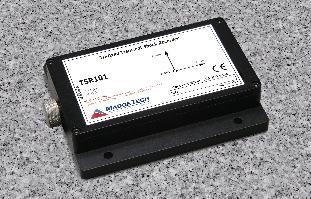

The TSR101 is a battery powered, 3-axis
shock logger. The device measures and records instantaneous shock
levels when the user-selectable trigger settings have been exceeded.
This allows for only pertinent data to be captured for the user.
There are 15 rates to choose from ranging from 1024 Hz to 1 Hz. The
TSR101 records pre-trigger data up to 50 readings, followed by the
number of samples set by the user. The window size can be set by the
user from 256 readings to full memory.
The TSR101 is valuable in
characterizing environments such as packaging and fragility
assessment (drop testing), brake and crash testing, and shipping
validation. This compact, easy to use device can measure and record
approximately 349,500 measurements per axis. The storage medium is
non-volatile solid state memory, providing maximum data security
even if the battery becomes discharged. The device can be started
and stopped directly from your computer and its small size allows it
to fit almost anywhere. The TSR101 makes data retrieval quick and
easy. Simply plug it into an empty COM or USB port and our
user-friendly software does the rest.
The TSR101 also comes in an extended
battery version, the TSR101-EB, that has a battery life of up to 30
days.
Specifications
|
|
|
TSR101
|
|
TSR101-EB
|
|
Channels: |
|
Shock (3 axes) |
|
Shock (3 axes) |
|
Acceleration Range: |
|
See Table Below |
|
See Table Below |
|
Acceleration Resolution: |
|
See Table Below |
|
See Table Below |
|
Calibrated Acceleration Accuracy: |
|
See Table Below |
|
See Table Below |
|
Memory: |
|
349,000/axis |
|
349,000/axis |
|
Sample Rate: |
|
15 options from 0.976ms/1,024Hz to 1 second,
selectable in software |
|
15 options from 0.976ms/1,024Hz to 1 second,
selectable in software |
|
Required Interface Package: |
|
IFC110 or IFC200 |
|
IFC110 or IFC200 |
|
Baud Rate: |
|
115,200 |
|
115,200 |
|
Typical Battery Life: |
|
7 days typical with lithium
battery |
|
Up to 30 days with alkaline battery |
|
Operating Environment: |
|
-20~+60°C, 0~95%RH non-condensing |
|
-20~+60°C, 0~95%RH non-condensing |
|
Material: |
|
Anodized aluminum |
|
Anodized aluminum |
|
Dimensions: |
|
3.5" x 4.4" x 1.0" (89mm x 112mm x
26mm) |
|
3.5" x 4.4" x 1.0" (89mm x 112mm x
26mm) |
|
Weight: |
|
12oz. |
|
12oz. |
|
Designed and manufactured in the USA. National Institute of Standards and Technology (N.I.S.T. USA) Conformity.
|
Acceleration Range, Calibrated Accuracy, Resolution
|
Range (g)
|
±5
|
±50
|
±100
|
±250
|
|
Calibrated Accuracy (g)
|
±0.2
|
±1
|
±2
|
±4
|
|
Resolution (g)
|
0.01
|
0.05
|
0.1
|
0.2 g
|
|
TSR101 / TSR101-EB Graph - MadgeTech Software
|
|
|
Analyze data using the software’s powerful tools to examine, export, and print professional-looking graphs.
|
Reminder ! IFC computer interface cable required for computer (PC) operation of data loggers.
Check the accessories selection below.
|
Accesories / Software |
Description |
| IFC110 |
Includes software, manual and RS232 computer interface cable |
| IFC200 |
Includes software, manual, Quick Start Guide and USB computer interface
cable
Note: USB drivers are compatible with Vista 32 bit systems, not Vista 64 bit systems. |
| USB-1 |
USB to RS232 converter cable |
| USB101 |
Includes software, manual, RS232 (IFC110) computer interface cable and USB to RS232 converter cable |
| Tibbo DS202R |
DS202 Serial to Ethernet Converter
The Tibbo DS202R allows MadgeTech Data Loggers to be accessed over a network. |
| NIST |
N.I.S.T. Calibration Certificate |
| U9VL-J |
9.0 Volt, Lithium Battery, 1200 mAH (for TSR101) |
| MN1300 |
1.5V D-cell Alkaline Battery (6 required) (for TSR101-EB) |
|
|
Tibbo DS202R
The Tibbo
DS202R allows MadgeTech Data Loggers to be accessed over a
network. This allows for a logger to be placed in remote locations
and maintain communications to control and/or monitor the device
by creating a serial tunnel (virtual RS232 connection). The DS202R
is a simple, yet powerful device, that is useful in many
applications where a typical serial device may be used. The Tibbo
DS202R is intended for use within network communications, making
it quite useful for remote data logging. One Tibbo DS202R can
effectively network-enable a single data logger. |
