Inregistrator de Stare

State loggers are useful for collecting data on the duration of an event. Our loggers can capture any event that lasts longer than one second. Some typical applications for state loggers include monitoring a furnace, air conditioner or pump turning on and off or how long a door is left opened or closed.

Our state loggers record a time-stamped value whenever the state of the input signal changes. They sample the state of the input at a user specified time interval and record to memory only if the state has changed from the previous sample. This efficient method of writing to memory maximizes the length of time the data loggers can record.

The State101 and State110 are single-channel state loggers which can record up to 13,107 time stamped state changes. The State110 also offers a real-time clock module, higher download speeds and can extend the battery life up to ten years.

The MadgeTech state loggers and software have the unique ability to allow user-chosen Engineering Units to be entered into the loggers. This allows for complete flexibility for each application. For example, a water pump, when on, pumps 10 liters / minute. Using the Engineering Units in software, the state logger can set up to equate the ON state with 10 liters and the OFF state with 0 liters. After the data is offloaded, the units displayed will be in units of liters (instead of "1" or "0") and the summary will show, for example, the average volume of water pumped.

If a custom analysis of state data is necessary (even in Engineering Units), one click will bring the data into an MS Excel® spreadsheet.

Specifications

		State101
Input Range:		0~12 VDC continuous; 0~30 VCD peak
Input Low:		<0.4V
Input High:		>2.7V
Internal Weak Pull-Up:		<500μA
Recommended Duty Cycle for Inputs Greater than 12VDC (over 1 minute interval):		18V:<50%, 24V:<25%, 30V:<10%
Resolution:		1 second
Channels:		1
Memory:		13,107 states
Sample Rate:		1 second up to 12 hours
LED Indicator:		Red
Required Interface Package:		IFC110 or IFC200
Baud Rate:		2,400
Typical Battery Life:		1 year
Operating Environment:		-40~+80°C, 0~95%RH non-condensing
Material:		ABS plastic
Dimensions:		1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm)
CE Approval:		Yes
Weight:		1oz.
Designed and manufactured in the USA. CE Conformity.

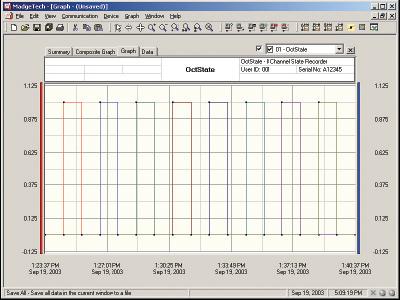

OctState Graph - MadgeTech Software

Analyze data using the software’s powerful tools to examine, export, and print professional-looking graphs.

Reminder ! IFC computer interface cable required for computer (PC) operation of data loggers. Check the accessories selection below.

Accesories / Software	Description
IFC110	Includes software, manual and RS232 computer interface cable
IFC200	Includes software, manual, Quick Start Guide and USB computer interface cable Note: USB drivers are compatible with Vista 32 bit systems, not Vista 64 bit systems.
USB-1	USB to RS232 converter cable
USB101	Includes software, manual, RS232 (IFC110) computer interface cable and USB to RS232 converter cable
CT-800	Current switch, 1 A set point
CT-805	Current switch, 1.5 A set point
CT-815	Current switch, adjustable set point with split core and LED
CT-H600	Current relay switch, 0.15 - 200 A, fixed set point, no status LEDs
CT-H608	Current relay switch, 1.25 - 50 A, adjustable set point, status LEDs
Waterbox110C	Water resistant enclosure with cable gland. Measures 3.7" x 4.9" x 1.7".
LTC-7PN	3.6 Volt, Lithium Battery, 750 mAH
