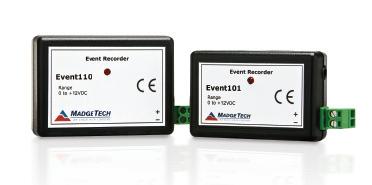

Event101, Event110 - Inregistratoare de
Evenimente
 |
Dimensiuni Event101: 36 mm x 64 mm x 16 mm |
Dimensiuni Event110: 44 mm x 69 mm x 21 mm |
|
|
|
|
|
Applications
- Tipping Bucket Rain Gauges
- Gas and Water Metering
- Traffic Studies
- Contact Closure Monitoring
- Time Studies
- Security Systems
|
|
Pret - la cerere
Marca: MadgeTech
Tara de fabricatie: SUA
Event101, Event110
masoara si inregistreaza:
Features
Event101
- Programmable Engineering Units
- Programmable Start Time
- Interfaces to Tipping Bucket Rain Gauges and Contact Closures
- Real-Time Operation
- Miniature Size
- Reusable
Event110
- Programmable Engineering Units
- Programmable Start Time
- Interfaces to Tipping Bucket Rain Gauges and Contact Closures
- Real-Time Operation
- Miniature Size
- Reusable
- High Speed Download to Computer
- Up to 10 Year Battery Life
MadgeTech’s event loggers record a
time stamped data point when an event takes place within a user
defined reading interval. The reading interval can be easily set
using the MadgeTech software to be from one second up to twelve
hours. When an event occurs on the input of the event logger, the
date and time is recorded to memory at the end of the reading
interval. By only writing to memory when an actual event occurs on
the input, the length of time the data loggers can record to memory
is maximized (13,107 events).
The event loggers can interface with
many different sources such as contact closures, pulse output
transducers and event initiators. These loggers also have
programmable engineering units, which give the user the ability to
scale the data collected into user defined units, such as inches of
water. A common application for an event logger is monitoring
tipping-bucket rain gauges. The event logger will record the time
when the bucket tips and the contact is closed, indicating a certain
amount of rainfall.
The Event101 and Event110 are single
channel event loggers that can detect an event that lasts for as
little as 10 milliseconds. The Event110 also offers higher download
speeds and can extend the battery life up to ten years.
Specifications
|
|
|
Event101
|
|
Event110
|
|
Input Range: |
|
0~12VDC continuous (0~30 VDC peak) |
|
0~12VDC continuous (0~30 VDC peak) |
|
Input Low: |
|
<0.4V |
|
<0.4V |
|
Input High: |
|
>2.7V |
|
>2.7V |
|
Internal Weak Pull-Up: |
|
<500μA |
|
<500μA |
|
Recommended Duty Cycle for Inputs Greater
than 12VDC (over 1 minute interval): |
|
18V:<50%, 24V:<25%,
30V:<10% |
|
18V:<50%, 24V:<25%,
30V:<10% |
|
Sample Rate: |
|
1 second up to 12 hours |
|
1 second up to 12 hours |
|
Minimum Time Resolution: |
|
1 second |
|
1 second |
|
Minimum Input Active (Low) Time: |
|
1 millisecond |
|
4 milliseconds |
|
Memory: |
|
13,107 events |
|
13,107 events |
|
LED Indicator: |
|
Red |
|
Red |
|
Required Interface Package: |
|
IFC110 or IFC200 |
|
IFC110 or IFC200 |
|
Baud Rate: |
|
2,400 |
|
57,600 |
|
Typical Battery Life: |
|
1 year |
|
10 years |
|
Operating Environment: |
|
-40~+80°C, 0~95%RH non-condensing |
|
-40~+80°C, 0~95%RH non-condensing |
|
Material: |
|
ABS plastic |
|
ABS plastic |
|
Dimensions: |
|
1.4" x 2.5" x 0.6" (36mm x 64mm x
16mm) |
|
1.7" x 2.7" x 0.8" (44mm x 69mm x
21mm) |
|
CE Approval: |
|
Yes |
|
Yes |
|
Weight: |
|
1oz. |
|
1oz. |
|
Designed and manufactured in the USA. CE Conformity.
|
Reminder ! IFC computer interface cable required for computer (PC) operation of data loggers.
Check the accessories selection below.
|
Accesories / Software |
Description |
| IFC110 |
Includes software, manual and RS232 computer interface cable |
| IFC200 |
Includes software, manual, Quick Start Guide and USB computer interface
cable
Note: USB drivers are compatible with Vista 32 bit systems, not Vista 64 bit systems. |
| USB-1 |
USB to RS232 converter cable |
| USB101 |
Includes software, manual, RS232 (IFC110) computer interface cable and USB to RS232 converter cable |
| Waterbox110C |
Water resistant enclosure with cable gland. Measures 3.7" x 4.9" x 1.7". |
| RainGauge |
Tipping-bucket rain gauge for use with the Event101 and Event110 data recorders |
| LTC-7PN |
3.6 Volt, Lithium Battery, 750 mAH |
